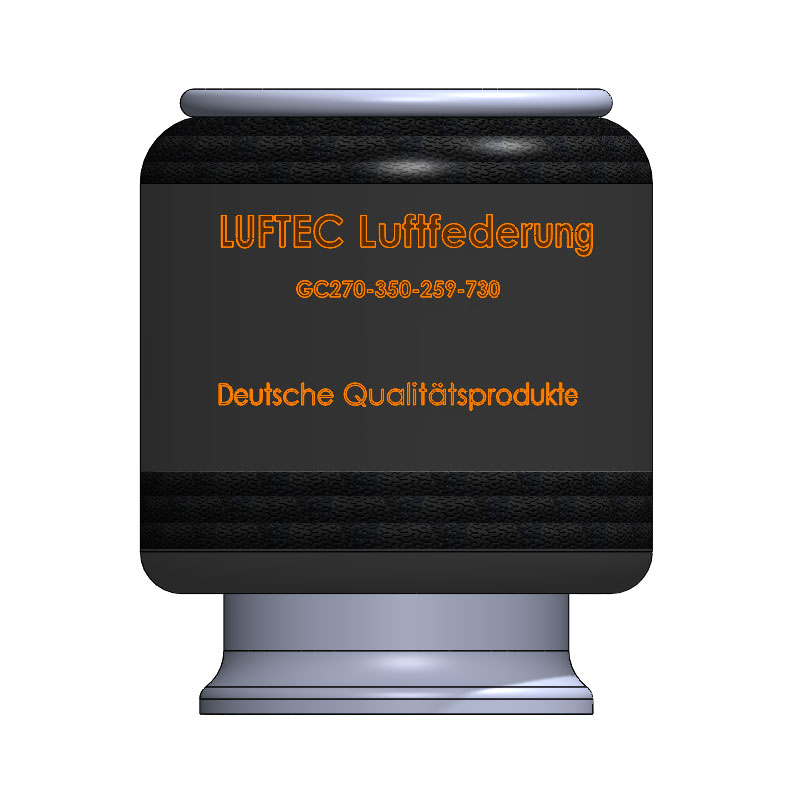

Model：13T 710260 J3
Benchmarking model: Firestone W01-M58-8104
Swap models:Vibracoustic V1DK28J-1; ContiTech 881 MB P30; BPW 36K
Product features: designed for China's road conditions and use conditions, the piston is strengthened, and the internal design has anti-collision buffer block, which is more safe and durable.
- Product details
| Bearing capacity at 7bar internal pressure | 42kN |
| Maximum allowable internal pressure at standard height | 8.5bar |
| Burst pressure | >21bar |
| Maximum outer diameter | 348mm |
| Minimum installation space required | 375mm |
| Maximum allowable height | 710mm |
| Stop height | 260mm |
| proper temperature | -40℃~60℃ |
| Weight | 14 |
| Piston material | steel |
